屬性概述
底座外殼
可鎖定蓋子
尺寸: D-Sub 1
PushPull
頂/側出線
2x
材料(上殼/底座): 熱塑性塑料
鍍金屬
RAL 7032（卵石灰）
防護等級: IP30

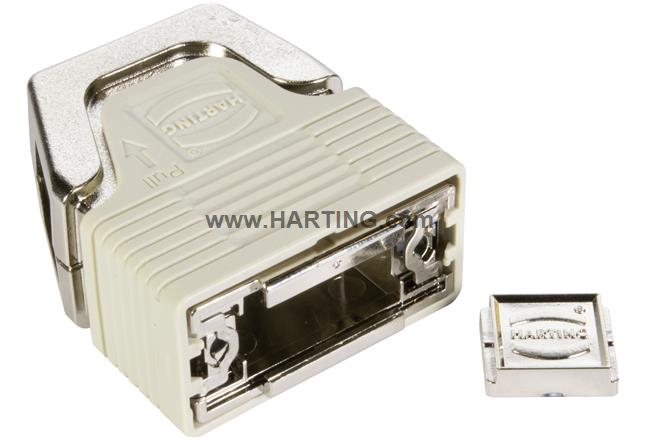

產品詳情
Identification
- Category Hoods / Housings
- Series D-Sub
- Type of hood/housing Shell housing
- Description of hood/housing Cover lockable
Version
- Size D-Sub 1
- Shielding Shielded
- Version Top/side entry
- Cable entry 2x
- Cable fixing Cable clamp
- Locking type PushPull
- 2 parts Yes
- Separable Yes
- Details An external InduCom cable clamp or a crimp flange - ferrule combination can be used to gain more space in the housing.
-
Pack contents
Blind plateinternal cable clamp with screws
Technical characteristics
- Tightening torque 0.35 Nm Cable clamp screw
- Ambient temperature -20 ... +90 °C
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP30
- Cable diameter 3.3 ... 14 mm Please follow the assembly instructions!
- Vibration resistance Category 1B acc. to IEC 61373
- Shock resistance Category 1B acc. to IEC 61373
Material properties
- Material (hood/housing) Thermoplastic
- Surface (hood/housing) Metallised
- Colour (hood/housing) RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94 HB
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Commercial data
- Packaging size 10
- Net weight 16 g
- Country of origin China
- European customs tariff number 85389099
- GTIN 5713140469921
- eCl@ss 27440213 D-Sub hood
- UNSPSC 24.0 39121416
