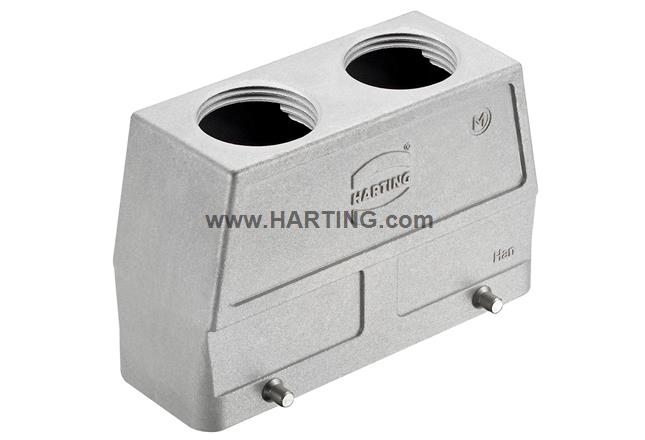

Identification
- Category Hoods / Housings
-
Series of hoods/housings
Han® EMC/BHan® High Temp
- Type of hood/housing Hood
- Type High construction
Version
- Size 24 B
- Version Top entry
- Number of cable entries 2
- Cable entry 2x M32
- Locking type Double locking lever
- Field of application Hoods/Housings for higher EMC requirements
Technical characteristics
-
Limiting temperature
-40 ... +125 °C-40 ... +200 °C With Han® High Temp components
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Mating cycles ≥ 500
-
Degree of protection acc. to IEC 60529
IP65IP66
-
Type rating acc. to UL 50 / UL 50E
412
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Uncoated
- Colour (hood/housing) Unpainted
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 48.8 g
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140133075
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
