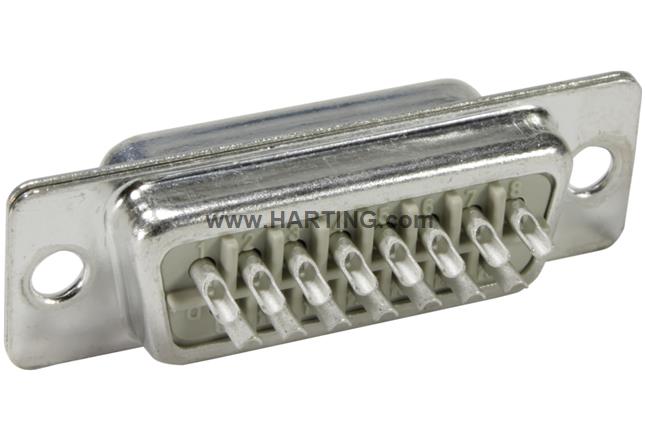

属性概述
连接器
焊杯接线
额定电流: 6.5 A
公头
尺寸: D-Sub 1
热塑性树脂，玻璃纤维填充（PBTP）, 外壳：镀钢
灰色
插针: 9
导体截面积: 0.5 mm²
铜合金
镍表面镀贵金属
产品详情
Identification
- Category Connectors
- Series D-Sub
- Identification Standard
- Element Connector
-
Description of the contact
StampedStraight
Version
- Termination method Solder cup termination
- Gender 公头
- Size D-Sub 1
-
Connection type
PCB至电缆飞线
- Number of contacts 9
- Locking type Fixing flange with feed through hole Ø 3.1 mm
Technical characteristics
- Conductor cross-section 0.5 mm²
- Conductor cross-section [AWG] AWG 20
- Rated current 6.5 A
- Clearance distance ≥ 1 mm
- Creepage distance ≥ 1 mm
- Insulation resistance >1010 Ω
- Contact resistance ≤ 10 mΩ
- Stripping length 2.5 ... 3 mm
- Limiting temperature -40 ... +85 °C （焊接过程中的烙铁温度：最高 350°C 持续 3-5 s）
- Insertion force ≤ 30 N
-
Withdrawal force
≥ 3.3 N≤ 20 N
-
Performance level
2符合 CECC 75301-802 标准
- Mating cycles ≥ 250
- Test voltage Ur.m.s. 1 kV
- Hot plugging 无
Material properties
-
Material (insert)
热塑性树脂，玻璃纤维填充（PBTP）外壳：镀钢
- Colour (insert) 灰色
- Material (contacts) 铜合金
- Surface (contacts) 镍表面镀贵金属
- Material flammability class acc. to UL 94 V-0
- RoHS 符合
- ELV status 符合
- China RoHS e
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 不包含
- California Proposition 65 substances 不包含
Specifications and approvals
- Specifications DIN 41652
Commercial data
- Packaging size 100
- Net weight 5 g
- Country of origin China
- European customs tariff number 85366990
- GTIN 5713140093966
- eCl@ss 27440214 D-Sub coupler
- ETIM EC001136
- UNSPSC 24.0 39121469
