Identification
- Category Contacts
- Series DIN 41612

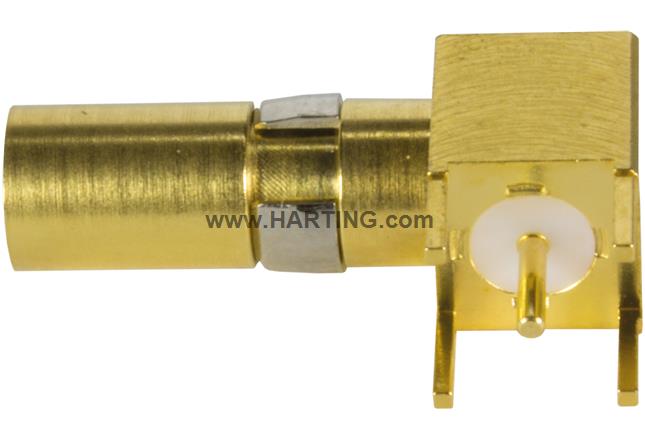

- Type of contact Coaxial contact
- Description of the contact Angled
- Contacts for DIN 41612 Type M invers
Version
- Termination method Solder termination
- Termination method PCB solder termination
- Gender Male contact for female connectors
-
Connection type
Motherboard to daughtercardMezzanineExtender cardPCB to cable
- Manufacturing process Turned contacts
Technical characteristics
- Rated current ≤ 1.5 A
- Insulation resistance >109 Ω
-
Contact resistance
≤10 mΩ for inner contact die≤3 mΩ for outer ferrule
- Impedance 50 Ω
- Impedance coaxial 50 Ω
- Limiting temperature -55 ... +125 °C
-
Return loss
>30 dB @ 1 GHz>25 dB @ 2 GHz>22 dB @ 4 GHz>18 dB @ 6 GHz
- Insertion force ≤ 10 N
- Withdrawal force ≥ 1 N
- Performance level 1
- Mating cycles ≥ 500
- Test voltage Ur.m.s. 0.75 kV
- Frequency 6 GHz
Material properties
- Material (contacts) Copper alloy
- Surface (contacts) Noble metal over Ni Mating side
- Material (locking) Copper alloy
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number 339476a1-86ba-49e9-ab4b-cd336420d72a
- California Proposition 65 substances Yes
-
California Proposition 65 substances
LeadNickel
Specifications and approvals
- Specifications DIN 41626
Commercial data
- Packaging size 30
- Net weight 2.1 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140003989
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
