属性概述
工业以太网交换机
非管理型
快速以太网
额定电压: 48, 54
端口总数: 8
10/100 Mbit/s (RJ45-Ports): 6
100 Mbit/s (SC-Ports): 2
工作温度: -40 ... +70 °C
产品详情
Identification

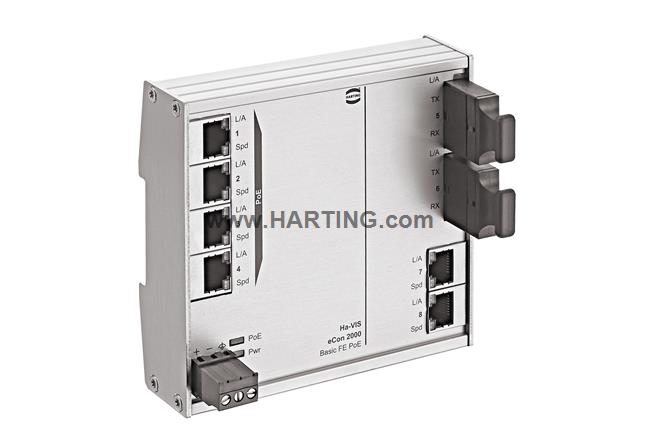

- Series Ha-VIS eCon 2000
- Element Průmyslové ethernetové switche
- Specification Nekonfigurovatelné
- Type of Ethernet Fast Ethernet
Version
- Total number of ports 8
- Fixing DIN lišta 35 mm podle EN 60715
- Switching technology Store and Forward
- Frame size 1.522 kB
- MAC table size 1k 入线口
- Packet buffer size 0.44 Megabit
- Non blocking 有
- Quality of service 有
- Energie Efficient Ethernet 有
- Flow control 关
- Signal contact 无
- PoE functionality Ano
-
Pack contents
可插拔电源螺栓插针组装说明
Termination data
-
Nominal voltage
48 V DC54 V DC
- Permissible voltage 44 ... 57 V DC
- Surge protection 有
-
Operating current
<1,400 mA @ 48 V DC<2,390 mA @ 54 V DC
- Supply circuit SELV (Circuit Breaker 10 A)
-
Starting current
<6.4 A @ 48 V DC<7.2 A @ 54 V DC
- Overcurrent protection 4 A 输入端
-
Power consumption
<69.2 W @ 48 V DC<139.7 W @ 54 V DC
- Termination method 可插拔螺栓插针
- Number of contacts 3
- Conductor cross-section 0.08 ... 2.5 mm²
- Conductor cross-section [AWG] AWG 28 ... AWG 12
- Pinout + / - / FE
- Reverse polarity protection 有
Technical characteristics
- Operating temperature -40 ... +70 °C
- Storage temperature -40 ... +85 °C
-
Relative humidity
0 ... 95 % 非冷凝（操作）0 ... 95 % 非冷凝（储存/运输）
- Air pressure ≥795 hPa ≈ 2000 m
- Degree of protection acc. to IEC 60529 IP30 插配状态
- MTBF ≈ 780,000 h
Ethernet ports copper
- 10/100 Mbit/s (RJ45-Ports) 6
-
Transmission standard
10BASE-Te100BASE-TX EEE
- Auto-negotiation Ano
- Auto-polarity Ano
- Auto-MDI(X) Ano
- Transmission physics Twisted Pair Kat. 5
-
Data rate
10 Mbit/s 100 Mbit/s
- Transmission length 100 m
Ethernet ports fibre
- 100 Mbit/s (SC-Ports) 2
- Transmission standard 100BASE-FX
- Fiber Jednovidový
-
Termination method
SC duplexZásuvka (female)
- Transmission physics Optika
- Wavelength 1.310 nm
- Data rate 100 Mbit/s
- Transmission length 15 km
- Output power -15 ... -8 dBm
- Input power -34
Porty pro Ethernet PoE
- Ethernet ports PoE 4
- Typ PoE PSE
- Supported PoE mode Alternativ A
- IEEE Standards IEEE 802.3af IEEE 802.3at
-
Power supply (PSE)
48 V DC54 V DC
-
Total output power (PSE)
≤ 61,6 W≤ 136,8 W
-
Output power (PSE) per port
≤ 15,4 W≤ 34,2 W
-
Current per port
≤ 375 mA≤ 638 mA
- Supported cabling Se IEEE 802.3at, afsnit 33.1.4
- Pinout Alternativ A, MDI-X (1/2 = V-, 3/6 = V+)
Material properties
- Material (hood/housing) 铝（阳极）
- Length 27.3 mm
- Width 120 mm
- Height 113.5 mm
- RoHS 符合
- ELV status 符合
- China RoHS e
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 不包含
- California Proposition 65 substances 有
Specifikace a schválení
-
Specifikace
EN 55022 Karakteristika for radiotransmissionsforstyrrelseEN 61000-4-2 Elektrostatisk udladning (ESD)EN 61000-4-3 Elektromagnetisk feltEN 61000-4-4 Hurtige transienter (burst)EN 61000-4-5 KrybestrømspændingerEN 61000-4-6 ledede forstyrrelserEN 61000-6-4 udledningsstandardIEC 60068-2-6 Vibration (sinusformet)
- UL / CSA
-
Schválení
CEDNV GL
- FCC Ja
Commercial data
- Packaging size 1
- Net weight 420 g
- Country of origin Německo
- European customs tariff number 85176200
- GTIN 5713140147355
- eCl@ss 19.170.130,00
- ETIM EC000734
- UNSPSC 24.0 43222612
