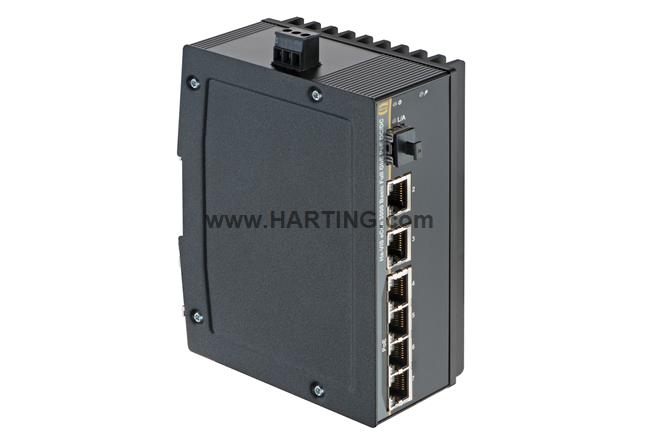

属性概述
工业以太网交换机
非管理型
全千兆以太网
额定电压: 24 V DC
端口总数: 7
10/100/1000 Mbit/s (RJ45-Ports): 6
1000 Mbit/s (Mini GBIC-Ports): 1
工作温度: -40 ... +70 °C
产品详情
Identification
- Series Ha-VIS eCon 3000
- Element Industrial Ethernet Switches
- Specification Unmanaged
- Type of Ethernet Full Gigabit Ethernet
Version
- Total number of ports 7
- Fixing 35 mm DIN rail acc. to EN 60715
- Switching technology Store and Forward
- Frame size 10 kB
- MAC table size 8k Entries
- Packet buffer size 1 Megabit
- Non blocking Yes
- Quality of service Yes
- Energie Efficient Ethernet Yes
- Flow control Off
- Signal contact No
- PoE functionality Yes
- PoE with integrated DC-DC converter Yes
- Jumbo frame support Yes
-
Pack contents
Pluggable screw contact for power supplyAssembly instructions
Connection data
- Nominal voltage 24 V DC
- Permissible voltage 18 ... 60 V DC
- Surge protection Yes
-
Operating current
<5,900 mA @ 24 V DC<2,950 mA @ 48 V DC
- Supply circuit SELV (Circuit Breaker 10 A)
- Starting current <1.6 A @ 24 V DC
- Overcurrent protection 12 A at input
- Power consumption <141.6 W @ 24 V DC
- Termination method Pluggable screw contact
- Number of contacts 3
- Conductor cross-section 0.08 ... 2.5 mm²
- Conductor cross-section AWG 28 ... AWG 12
- Pinout + / - / FE
- Reverse polarity proof Yes
Technical characteristics
- Operating temperature -40 ... +70 °C
- Storage temperature -40 ... +85 °C
-
Relative humidity
0 ... 95 % Non-condensing (operation)0 ... 95 % Non-condensing (storage/transport)
- Air pressure ≥795 hPa ≈ 2000 m
- Degree of protection acc. to IEC 60529 IP30 mated condition
- MTBF ≈ 540,000 h
Ethernet ports copper
- 10/100/1000 Mbit/s (RJ45-Ports) 6
-
Transmission standard
10BASE-Te100BASE-TX EEE1000BASE-T EEE
- Auto-negotiation Yes
- Auto-polarity Yes
- Auto-MDI(X) Yes
- Transmission physics Twisted Pair Cat. 5
-
Data rate
10 Mbit/s 100 Mbit/s 1,000 Mbit/s
- Transmission length 100 m
Ethernet ports SFP
- 1000 Mbit/s (Mini GBIC-Ports) 1
- Termination method LC female
- Transmission physics FO
-
Data rate
100 Mbit/s 1,000 Mbit/s
Ethernet ports PoE
- Ethernet ports PoE 4
- Type of PoE PSE
- Supported PoE mode Alternative A
- IEEE Standards IEEE 802.3af IEEE 802.3at
- Power supply (PSE) 24 V DC
-
Total output power (PSE)
≤ 61.6 W≤ 136.8 W
-
Output power (PSE) per port
≤ 15.4 W≤ 34.2 W
-
Current per port
≤ 375 mA≤ 638 mA
- Supported cabling See IEEE 802.3at, section 33.1.4
- Pinout Alternative A, MDI-X (1/2 = V-, 3/6 = V+)
Material properties
-
Material (hood/housing)
Aluminium (anodised)Steel sheet (powder-coated)
- Length 107.5 mm
- Width 60 mm
- Height 142 mm
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
- California Proposition 65 substances Nickel
Specifications and approvals
-
Specifications
EN 55022 Radio disturbance characteristicsEN 61000-4-2 Electrostatic discharge (ESD)EN 61000-4-3 Electromagnetic fieldEN 61000-4-4 Rapid transients (burst)EN 61000-4-5 Surge voltagesEN 61000-4-6 conducted disturbancesEN 61000-6-4 emission standardIEC 60068-2-6 Vibration (sinusoidal)
- UL / CSA
-
Approvals
CEDNV GL
- FCC Yes
Commercial data
- Packaging size 1
- Net weight 898 g
- Country of origin Germany
- European customs tariff number 85176200
- GTIN 5713140195332
- eCl@ss 19170130 Network switch (general application)
- ETIM EC000734
- UNSPSC 24.0 43222612
