属性概述

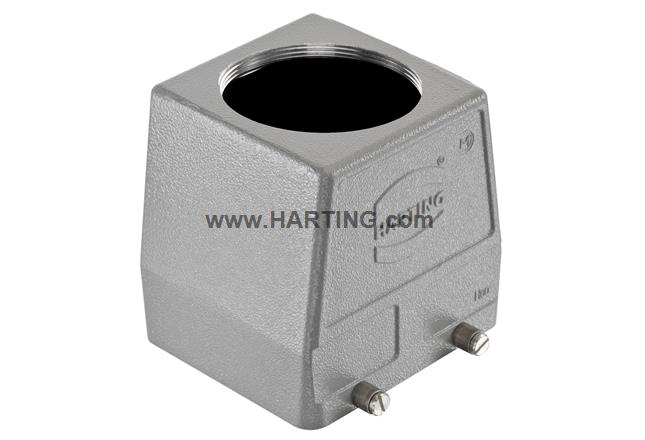

Hood
Size: 32 B
High construction
Double locking lever
Top entry
1x M63
Material (hood/housing): Aluminium die-cast
Powder-coated
RAL 7037 (dust grey)
产品详情
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® B
- Type of hood/housing Hood
- Type High construction
Version
- Size 32 B
- Version Top entry
- Number of cable entries 1
- Cable entry 1x M63
- Locking type Double locking lever
- Field of application Standard hoods/housings for industrial connectors
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP65
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 7037 (dust grey)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 450.3 g
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140833043
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
