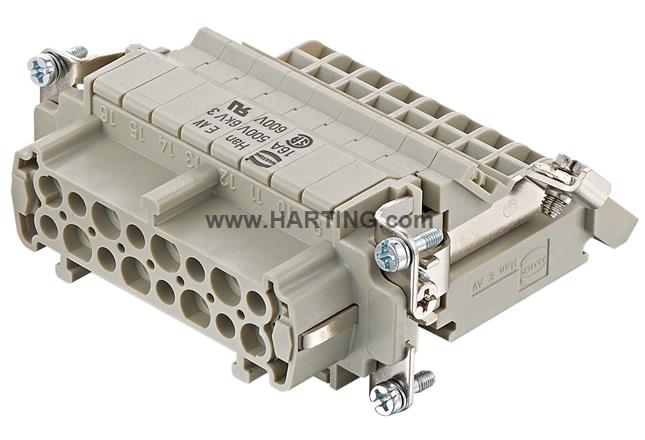

属性概述
插芯
端子连接器
螺栓接线
母头
聚碳酸酯 (PC)
RAL 7032（卵石灰）
额定电流: 16 A
尺寸: 16 B
插针: 16
导体截面积: 0.2 ... 2.5 mm²
铜合金
镀银
产品详情
Identification
- Category 插芯
- Series Han E® AV
- Element 端子连接器
-
Specification
右侧板本单面外形 (SK)
Version
- Termination method 螺栓接线
- Gender 母头
- Size 16 B
- Number of contacts 16
- PE contact 是
Technical characteristics
- Conductor cross-section 0.2 ... 2.5 mm²
- Rated current 16 A
- Rated voltage 500 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Rated voltage acc. to UL 600 V
- Insulation resistance >1010 Ω
- Contact resistance ≤ 4 mΩ
-
Tightening torque
0.5 Nm 插针螺钉M30.5 Nm M3固定螺栓
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Policarbonato (PC)
- Colour (insert) RAL 7032 (gris guijarro)
- Material (contacts) Aleación de cobre
- Surface (contacts) Chapado en plata
- Material flammability class acc. to UL 94 V-0
- RoHS conforme con exención
- RoHS exemptions 6(c)：铜合金含铅量高达 4 %
- ELV status conforme con exención
- China RoHS 50
- REACH Annex XVII substances No incluido
- REACH ANNEX XIV substances No incluido
- REACH SVHC substances Sí
- REACH SVHC substances Plomo
- ECHA SCIP number 5dbb3851-b94e-4e88-97a1-571845975242
- California Proposition 65 substances Sí
-
California Proposition 65 substances
PlomoNíquel
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 159.32 g
- Country of origin 罗马尼亚
- European customs tariff number 85366990
- GTIN 5713140051690
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
