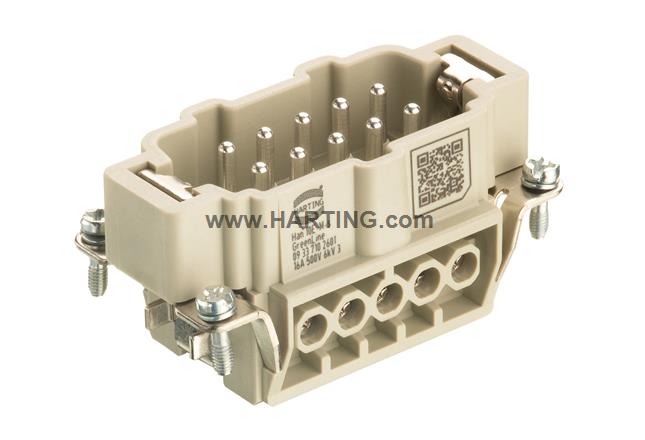

型号: 09 33 710 2601
Han E10_I_SMC_M_SCT_Ag_GreenLine
Han E10_I_SMC_M_SCT_Ag_GreenLine

图片仅供参考,请查阅产品说明。

属性概述
插芯
螺栓接线
公头
聚碳酸酯 (PC)
RAL 7032(卵石灰)
额定电流: ‌16 A
尺寸: 10 B
插针: 10
导体截面积: 0.75 ... 2.5 mm²
铜合金
镀银
注释
比较
在配置器中加载
自定义降额工具
型号: 09 33 710 2601
Han E10_I_SMC_M_SCT_Ag_GreenLine
注释
比较
在配置器中加载
自定义降额工具
All functionalities, price and availability after sign in.
添加到心愿单
配套产品
Combinables
14
饰品
5
备件
1
上売/底座
470
产品详情
Identification
  • Category 插芯
  • Series Han E®
  • Features Han® GreenLine
Version
  • Termination method 螺栓接线
  • Gender 公头
  • Size 10 B
  • With wire protection
  • Number of contacts 10
  • PE contact
Technical characteristics
  • Conductor cross-section 0.75 ... 2.5 mm²
  • Conductor cross-section AWG 18 ... AWG 14
  • Rated current ‌ 16 A
  • Rated voltage 500 V
  • Rated impulse voltage 6 kV
  • Pollution degree 3
  • Rated voltage acc. to UL 600 V
  • Rated voltage acc. to CSA 600 V
  • Insulation resistance >1010 Ω
  • Contact resistance ≤ 1 mΩ
  • Stripping length 7.5 mm
  • Tightening torque
    ‌0.5 Nm 插针螺钉M3
    ‌0.5 Nm M3固定螺栓
    ‌1.2 Nm PE 螺钉 M4
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
Material properties
  • Material (insert) 聚碳酸酯 (PC)
  • Colour (insert) RAL 7032(卵石灰)
  • Material (contacts) 铜合金
  • Surface (contacts) 镀银
  • Material flammability class acc. to UL 94 V-0
Specifications and approvals
  • Specifications
    IEC 60664-1
    IEC 61984
Commercial data
  • Packaging size 1
  • Net weight 40 g
  • Country of origin 德国
  • European customs tariff number 85366990
  • GTIN 5713140472976
  • eCl@ss 27440205 Contact insert for industrial connectors
  • ETIM EC000438
  • UNSPSC 24.0 39121522
