属性概述
插芯
端子连接器
笼式弹片接线
公头
聚碳酸酯 (PC)
RAL 7032（卵石灰）
额定电流: 16 A
尺寸: 6 B
插针: 6
导体截面积: 0.14 ... 2.5 mm²
铜合金
镀银

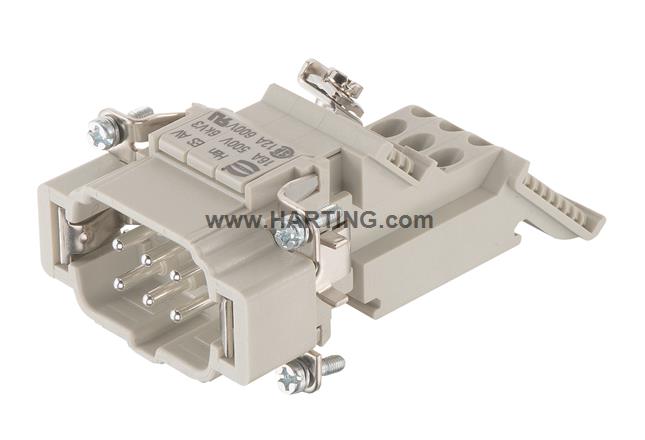

产品详情
Identification
- Category Inserts
- Series Han® ES AV
- Element Terminal block connector
-
Specification
Left hand versionSingle contour (SK)
Version
- Termination method Cage-clamp termination
- Gender Male
- Size 6 B
- Number of contacts 6
- PE contact Ano
Technical characteristics
- Conductor cross-section 0,14 ... 2,5 mm²
- Rated current 16 A
- Rated voltage 500 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Rated current acc. to UL 12 A
- Rated voltage acc. to UL 600 V
- Rated current acc. to CSA 12 A
- Insulation resistance >1010 Ω
- Contact resistance ≤ 4 mΩ
-
Tightening torque
0,5 Nm Kontaktní šroub M30,5 Nm Upevňovací šrouby M3
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Polykarbonát (PC)
- Colour (insert) RAL 7032 (štěrková šedá)
- Material (contacts) Slitina mědi
- Surface (contacts) Postříbřený
- Material flammability class acc. to UL 94 V-0
- RoHS V souladu s předpisy (s výjimkou)
- RoHS exemptions 6(c): slitiny s mědí obsahující až 4 % hmot. olova
- ELV status V souladu s předpisy (s výjimkou)
- China RoHS 50
- REACH Annex XVII substances Neobsahuje
- REACH ANNEX XIV substances Neobsahuje
- REACH SVHC substances Ano
- REACH SVHC substances Olovo
- California Proposition 65 substances Ano
-
California Proposition 65 substances
OlovoNikl
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 77.36 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140050891
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
