属性概述

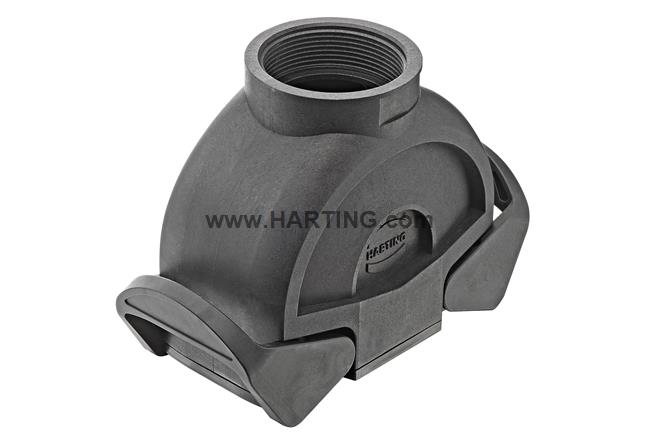

飞线底座
尺寸: 16 B
双锁扣
聚酰胺 (PA), 强化型玻璃光纤
顶出线
1x M40
材料 (上壳/底座): 聚酰胺 (PA), 强化型玻璃光纤
RAL 9005（乌黑）
材料(密封件): NBR
产品详情
标识
- 类别 Hoods / Housings
- 上壳/底座系列 Han-Eco® Modular
- 上壳/底座类型 Cable to cable housing
版本
- 尺寸 16 B
- 模块插槽 5
- 版本 Top entry
- 电缆入口数量 1
- 出线孔 1x M40
- 锁定类型 Double locking lever
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Number of relockings ≥ 500
- Degree of protection acc. to IEC 60529 IP65
Material properties
-
Material (hood/housing)
Polyamide (PA)Fibre-glass reinforced
- Colour (hood/housing) RAL 9005 (jet black)
- Material (seal) NBR
- Colour (seal) RAL 9005 (jet black)
-
Material (locking)
Polyamide (PA)Fibre-glass reinforced
- Colour (locking) RAL 9005 (jet black)
- Material flammability class acc. to UL 94 V-0
- Material flammability class acc. to UL 94 (locking levers) V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
商业数据
- 包装尺寸 1
- 净重 180 g
- 原产国 Germany
- 欧洲海关关税号 85389099
- GTIN 5713140131040
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
