属性概述

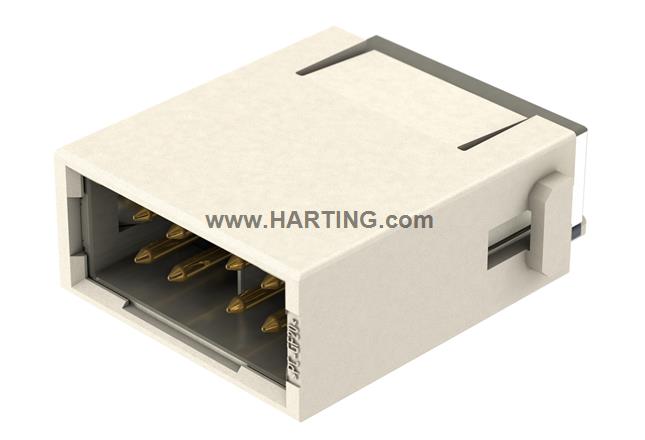

Han ® MegaBit 模块
插芯, 2x 4 针
快速接线端
公头
插针: 8 +屏蔽
额定电流: 10 A
聚碳酸酯 (PC)
RAL 7032（卵石灰）
产品详情
Identification
- Category Modules
- Type of module Han® Megabit module
-
Description of the module
Insert2x 4 contacts
Version
- Termination method 快速接线端
- Gender 公头
- Number of contacts 8
- Additional contacts +屏蔽
- Details 另带至铰链式框架的屏蔽连接
Technical characteristics
- Wire outer diameter ≤3.5 mm
- Rated current 10 A
- Rated voltage 50 V
- Rated impulse voltage 0.8 kV
- Pollution degree 3
- Transmission characteristics Cat. 5 D 级：到 100 MHz
- Data rate 100 Mbit/s
- Contact resistance, shielding ≤ 100 mΩ
- Limiting temperature -40 ... +85 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) 聚碳酸酯 (PC)
- Colour (insert) RAL 7032（卵石灰）
- Material (shielding) 锌压铸，镀镍
- Material flammability class acc. to UL 94 V-0
- RoHS 符合豁免标准
- RoHS exemptions 6(c)：铜合金含铅量高达 4 %
- ELV status 符合豁免标准
- China RoHS 50
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 有
- REACH SVHC substances 铅
- California Proposition 65 substances 有
- California Proposition 65 substances 铅
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984EN 50467IEC 61373 2类
Commercial data
- Packaging size 2
- Net weight 40.005 g
- Country of origin Romania
- European customs tariff number 85389099
- GTIN 5713140187610
- eCl@ss 27440218 Module for industrial connectors (data)
- ETIM EC000438
- UNSPSC 24.0 39121552
