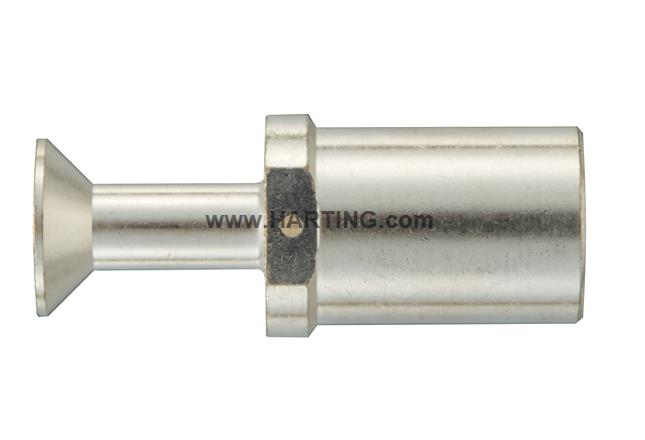

Identification
- Category Contacts
- Series TC 350
- Type of contact Crimp contact
Version
- Termination method Crimp termination
- Gender Female
- Manufacturing process Turned contacts
- Details The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.
Technical characteristics
- Conductor cross-section 16 mm²
- Rated current ≤ 350 A
- Contact resistance ≤ 0.3 mΩ
- Stripping length 26 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
- Vibration resistance Category 2 acc. to IEC 61373
- Shock resistance Category 2 acc. to IEC 61373
Material properties
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number b51e5b97-eeb5-438b-8538-f1771d43c17d
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 64 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140188457
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
