产品详情
Identification
- Category System cabling

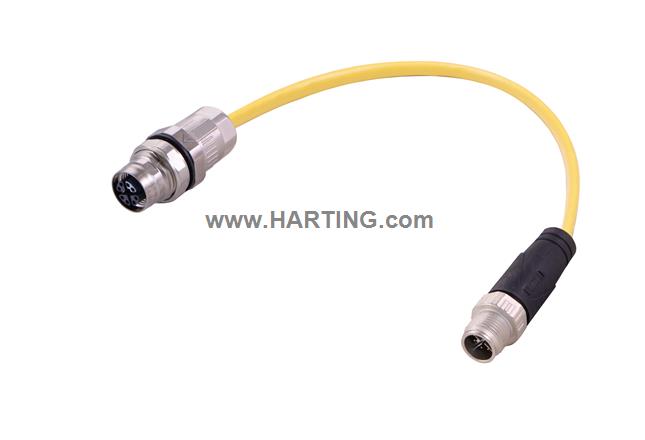

- Series Circular connectors M12
- Element Cable assemblies
- Specification Pre-assembled on both sides
-
Connector 1
M12 X-codingMale Straight
-
Connector 2
M12 X-codingFemale StraightPanel feed through
- Type of cable Copper cable (round)
Version
- Cable length 2 m
- Number of cores 8
- Core structure 4x 2x AWG 26/7
- Shielding Shielded
- Coding X-coding
Technical characteristics
- Transmission characteristics Cat. 6A Class EA up to 500 MHz
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
- Cable diameter 6.7 mm ± 0.3 mm
Material properties
- Material (cable) PUR (polyurethane)
- Colour (cable) Yellow
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
- Specifications UN/ECE-R 118 fire protection for rolling stock
Commercial data
- Packaging size 1
- Country of origin China
- European customs tariff number 85444290
- GTIN 5713140267060
- eCl@ss 27060390 Ready-made data cable (unspecified)
- ETIM EC002599
- UNSPSC 24.0 26121600
