Identification
- Category Connectors
- Series HARTING PushPull (V4)

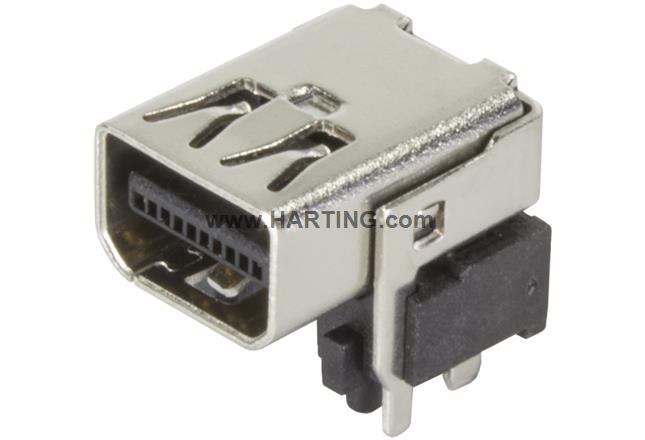

- Identification Mini DisplayPort
- Element PCB jack
Version
- Termination method Reflow soldering termination (SMT)
- Shielding Fully shielded, 360° shielding contact
- Number of contacts 20
Technical characteristics
- Rated current 0.5 A
- Rated voltage 30 V
- Transmission characteristics DisplayPort 1.3 standard
- Limiting temperature -40 ... +85 °C
- Mating cycles ≥ 10,000
-
Degree of protection acc. to IEC 60529
IP20IP65 mated conditionIP67 mated condition
Material properties
- Surface (contacts) Gold plated Mating side
- Layer thickness ≥ 1 µm
- Material (hood/housing) Polyamide (PA)
- Colour (hood/housing) Black
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
Specifications and approvals
- Specifications IEC 61076-3-106 变体 4 (V4)
Commercial data
- Packaging size 400
- Net weight 2.75 g
- Country of origin China
- European customs tariff number 85366990
- GTIN 5713140223639
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
