Identification

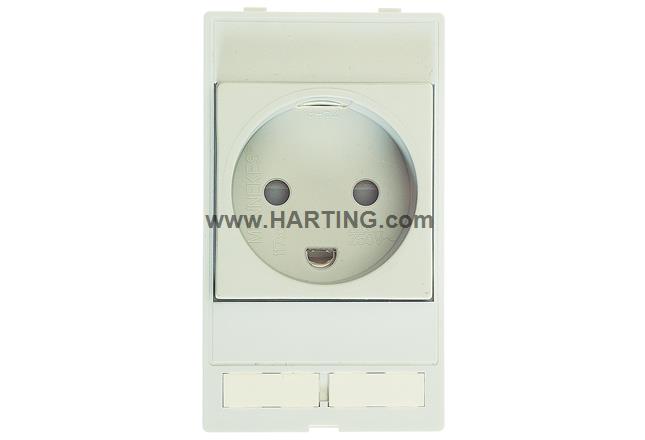

- Category Sockets
- Series of hoods/housings Han-Port®
- Element Socket
Version
- Termination method Spring clamp termination
- Field of application Denmark
Termination data
- Supply voltage 250 V AC
- Nominal current 13 A
- Nominal frequency 50 Hz
Technical characteristics
- Conductor cross-section 2.5 mm²
- Mounting depth 20 mm
Material properties
- Material (hood/housing) Thermoplastic
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
Commercial data
- Packaging size 1
- Net weight 74.3 g
- Country of origin Czechia
- European customs tariff number 85366990
- GTIN 5713140154957
- eCl@ss 27144042 Plug socket
- ETIM EC000450
- UNSPSC 24.0 39121406
