Identification
- Category Connectors
-
Series

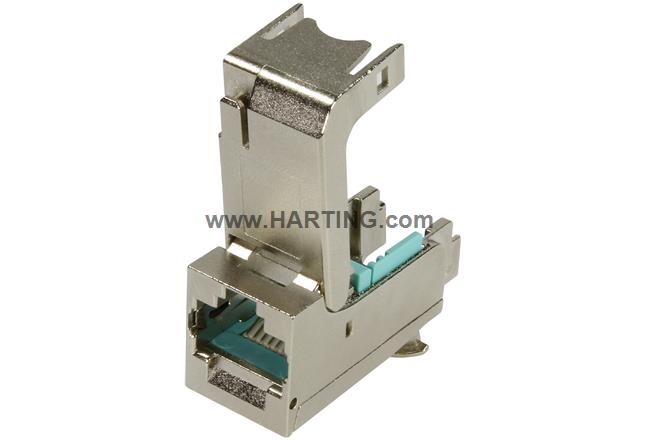

preLink®RJ45
- Element Female module
- Specification With termination block
Version
- Termination method preLink® IDC insulation displacement termination
- Size Keystone version
- Pack contents 24 pieces
Technical characteristics
-
Conductor cross-section
0.1 ... 0.12 mm²0.22 ... 0.32 mm²
-
Conductor cross-section [AWG]
AWG 27 ... AWG 26AWG 24 ... AWG 22
- Transmission characteristics Cat. 6A Class EA up to 500 MHz
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
- Limiting temperature -40 ... +85 °C
- Degree of protection acc. to IEC 60529 IP20
- Vibration resistance 5.72 m/s² acc. to IEC 61373 Category 1 Class B
- Shock resistance 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B
Material properties
- RoHS 符合
- ELV status 符合
- China RoHS e
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 不包含
Specifications and approvals
- Specifications EN 45545-2
- Approvals DNV GL
- PROFINET 是
Commercial data
- Packaging size 24
- Net weight 23.646 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140135741
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
