產品詳情

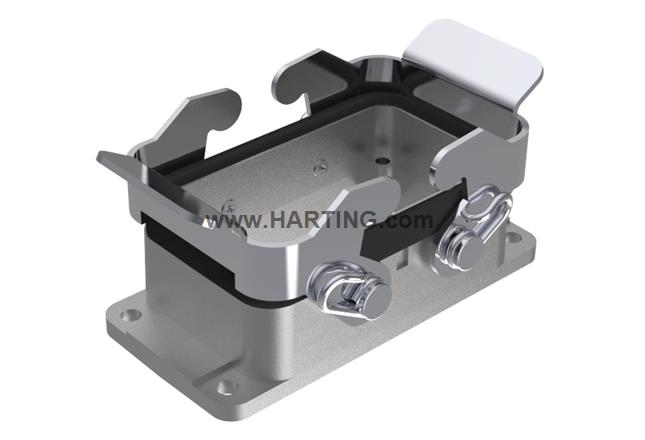

Identification
- Category Hoods / Housings
- Series of hoods/housings Han® EMC/B
- Type of hood/housing Bulkhead mounted housing
- Description of hood/housing External seal
- Type Low construction
Version
- Size 10 B
- Locking type Double locking lever
- Field of application Hoods/Housings for higher EMC requirements
Technical characteristics
- Tightening torque 1 Nm Fixing screws M4
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP66
-
Type rating acc. to UL 50 / UL 50E
412
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Uncoated
- Colour (hood/housing) Unpainted
- Material (seal) NBR
- Material (locking) Steel, zinc plated
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 0.01 g
- Country of origin China
- European customs tariff number 85389099
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
