屬性概述

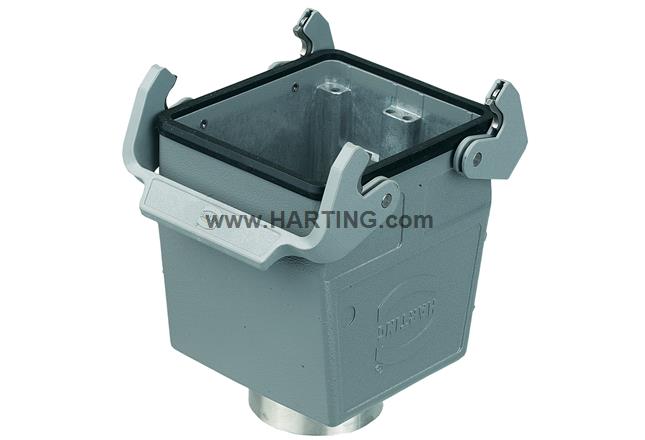

飛線底座
尺寸: 32 B
高結構
雙鎖扣
聚碳酸酯 (PC), 不銹鋼
頂出線
1x Pg 42
材料(上殼/底座): 壓鑄鋁
粉末塗層
RAL 7037（土灰）
材料(密封件): NBR
產品詳情
Identification
- Category 上売/底座
- Series of hoods/housings Han® B
- Type of hood/housing 飞线底座
- Type 高结构
Version
- Size 32 B
- Version 顶出线
- Number of cable entries 1
- Cable entry 1x Pg 42
- Locking type 双锁扣
- Han-Easy Lock® 是
- Field of application 用于工业连接器的标准上売/底座
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature 用作符合 IEC 61984 标准的连接器。
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP65
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
- Material (hood/housing) 压铸铝
- Surface (hood/housing) 粉末涂层
- Colour (hood/housing) RAL 7037（土灰）
- Material (seal) NBR
-
Material (locking)
聚碳酸酯 (PC)不锈钢
- Colour (locking) RAL 7037（土灰）
- Material flammability class acc. to UL 94 (locking levers) V-0
- RoHS 符合豁免标准
- RoHS exemptions 6(c)：铜合金含铅量高达 4 %
- ELV status 符合豁免标准
- China RoHS 50
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 有
-
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate铅
- ECHA SCIP number 60b1a572-bb3f-476f-9307-b7d1688bd90c
- California Proposition 65 substances 有
- California Proposition 65 substances 铅
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 567 g
- Country of origin 德国
- European customs tariff number 85389099
- GTIN 5713140048218
- eCl@ss 27440202 长方形连接器的外壳
- ETIM EC000437
- UNSPSC 24.0 39121466
