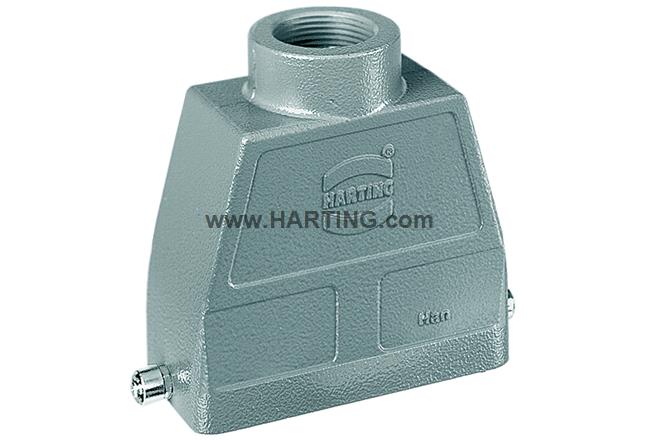

Identification
- Category Hoods / Housings
- Series of hoods/housings Han® B
- Type of hood/housing Hood
- Type High construction
Version
- Size 10 B
- Version Top entry
- Number of cable entries 1
- Cable entry 1x Pg 21
- Locking type Single locking lever
- Field of application Standard hoods/housings for industrial connectors
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Mating cycles ≥ 500
-
Degree of protection acc. to IEC 60529
IP65IP66IP67
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 7037 (dust grey)
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number 564b7d75-7bf6-4cfb-acb1-2168eb61b675
- California Proposition 65 substances Yes
-
California Proposition 65 substances
LeadNickel
- Fire protection on railway vehicles EN 45545-2 (2020-08)
-
Requirement set with Hazard Levels
R1 (HL 1-3)R7 (HL 1-3)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 180 g
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140044661
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
