屬性概述

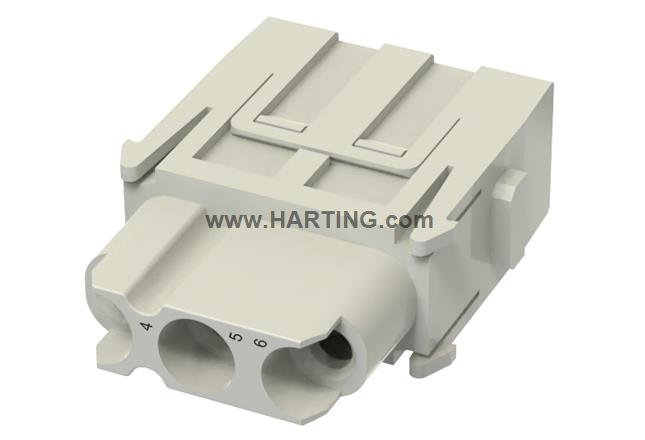

Han® C module
Single module
for increased tensile stress
Crimp termination
Female
Contacts: 3
Conductor cross-section: 1.5 ... 10 mm²
Rated current: 40 A
Polycarbonate (PC)
RAL 7032 (pebble grey)
產品詳情
Identification
- Category Modules
- Series Han-Modular®
- Type of module Han® C module
- Size of the module Single module
- Description of the module for increased tensile stress
Version
- Termination method Crimp termination
- Gender Female
- Number of contacts 3
- Contact identification 4 ... 6
- Details Please order crimp contacts separately.
Technical characteristics
- Conductor cross-section 1.5 ... 10 mm²
-
Wire outer diameter
≤4.8 mm4.8 ... 6 mm Stripping length 18 mm6 ... 7.5 mm Stripping length 18 mm and restricted contact removal
- Rated current 40 A
- Rated voltage 500 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Rated current acc. to UL 32 A
- Rated voltage acc. to UL 600 V
- Insulation resistance >1010 Ω
-
Stripping length
9.5 mm18 mm Wire outer diameter > 4.8 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 10,000
- Note on the mating cycles Mating cycles with other HMC components
Material properties
- Material (insert) Polycarbonate (PC)
- Colour (insert) RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984IEC 61373 Category 2
- Approvals DNV GL
Commercial data
- Packaging size 100
- Net weight 14.9 g
- Country of origin Germany
- European customs tariff number 85366990
- eCl@ss 27440217 Module for industrial connectors (power/signals)
- ETIM EC000438
- UNSPSC 24.0 39121552
