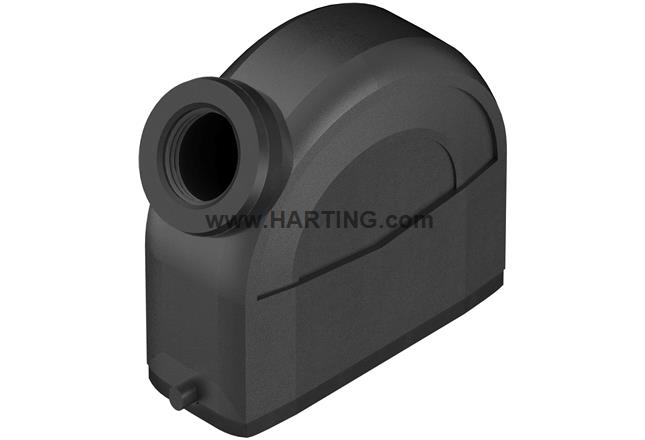

屬性概述
上壳
尺寸: 16 A
单锁扣
边出线
1x M20
材料 (上壳/底座): 聚酰胺 (PA), 强化型玻璃光纤
RAL 9005（乌黑）
材料(密封件): NBR
產品詳情
Identification
- Category Hoods / Housings
- Series of hoods/housings Han-Eco® A
- Type of hood/housing Hood
Version
- Size 16 A
- Version Side entry
- Number of cable entries 1
- Cable entry 1x M20
- Locking type Single locking lever
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Number of relockings ≥ 500
- Degree of protection acc. to IEC 60529 IP65
Material properties
-
Material (hood/housing)
Polyamide (PA)Fibre-glass reinforced
- Colour (hood/housing) RAL 9005 (jet black)
- Material (seal) NBR
- Colour (seal) RAL 9005 (jet black)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- California Proposition 65 substances Yes
-
California Proposition 65 substances
LeadNickel
- Fire protection on railway vehicles EN 45545-2 (2020-08)
-
Requirement set with Hazard Levels
R22 (HL 1-2)R23 (HL 1-3)
Specifications and approvals
-
Specifications
IEC 61984EN 45545-2 Fire protection on railway vehicles
- Approvals CE
Commercial data
- Packaging size 1
- Net weight 68.2 g
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140176348
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
