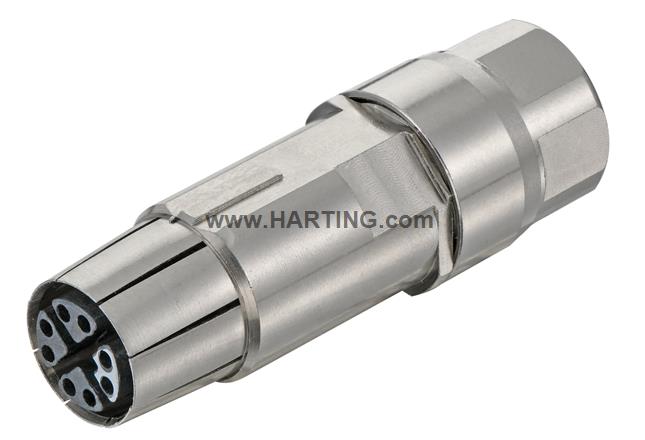

Identification
- Category Inserts
- Series Han-Modular®
- Specification With metal nut
Version
- Termination method Crimp termination
- Gender Female
- Number of contacts 8
- Additional contacts + shielding
- Coding X-coding
- Details Please order crimp contacts separately.
Technical characteristics
- Conductor cross-section 0.08 ... 0.25 mm²
- Conductor cross-section AWG 28 ... AWG 23
- Wire outer diameter ≤1.4 mm
- Rated current 0.5 A
- Rated voltage 32 V
- Rated impulse voltage 0.8 kV
- Pollution degree 3
- Transmission characteristics Cat. 6A Class EA up to 500 MHz
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
- Insulation resistance >108 Ω
- Contact resistance ≤ 10 mΩ
- Contact resistance, shielding ≤ 100 mΩ
- Tightening torque 0.6 Nm
-
Wrench size
1213
- Limiting temperature -40 ... +85 °C
- Mating cycles ≥ 500
- Cable diameter 5.5 ... 8.7 mm
Material properties
- Material (insert) Liquid crystal polymer (LCP)
- Material (shielding) Copper alloy, nickel plated
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140187832
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
