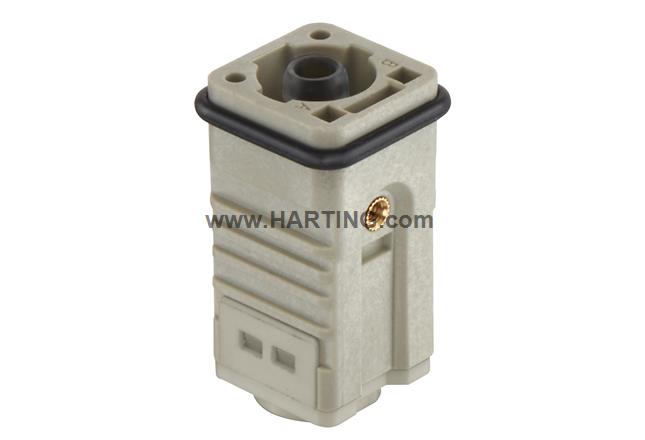

屬性概述
插蕊
軸向螺栓接線方式
公頭
聚碳酸酯 (PC), 聚酰胺 (PA)
RAL 7032（卵石灰）
額定電流: 100 A
尺寸: 3 A
插針: 1
導體截面積: 16 ... 25 mm²
銅合金
鍍銀
產品詳情
Identification
- Category Inserts
- Series Han® Q
- Identification 1/0 protected
Version
- Termination method Axial screw termination
- Gender Male
- Size 3 A
- Number of contacts 1
-
Details
The described connectors are connectors without breaking capacity (COC) according to IEC 61984 and must not be coupled or decoupled under electrical load during use as intended!Only cables with protection class 2 shall be used!The axial screw termination is suitable for fine stranded wires according to EN 60228 class 5. Using alternative cables have to be tested separately.For the assembly within bulkhead mounted housings the described installation conditions of the data and type sheets must be respected.Only the housings linked in the eShop shall be used!For the connection of the conductor into the axial screw contact use hex key with AF 4.
Technical characteristics
- Conductor cross-section 16 ... 25 mm²
- Conductor cross-section AWG 6 ... AWG 4
- Rated current 100 A
- Rated voltage 400 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Insulation resistance >1010 Ω
- Contact resistance ≤ 0.3 mΩ
- Stripping length 10 mm
- Tightening torque 6 ... 7 Nm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
-
Material (insert)
Polycarbonate (PC)Polyamide (PA)
- Colour (insert) RAL 7032 (pebble grey)
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
-
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonateLead
- ECHA SCIP number 1e38d35d-d1be-4585-8e03-95faccd739bf
- California Proposition 65 substances Yes
-
California Proposition 65 substances
LeadNickel
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 37.391 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140186514
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
