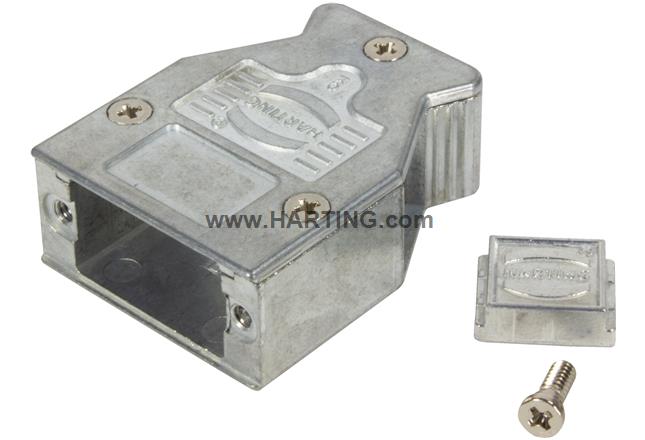

Identification
- Category Hoods / Housings
- Series D-Sub
- Identification InduCom
- Type of hood/housing Shell housing
- Description of hood/housing Without internal earth
Version
- Size D-Sub 1
- Version Top/side entry
- Number of cable entries 2
- Cable entry 2x
- Strain relief An additional InduCom cable clamp or a crimp flange - ferrule combination is available dependant on the use of the cable.
- Locking type Spring or slide locking
- ground connection Without internal grounding block
- 2 parts Yes
- Separable Yes
- Details Part number includes one dummy plug
Technical characteristics
-
Tightening torque
0.4 Nm cover screw0.4 Nm Locking screw
- Limiting temperature -55 ... +125 °C
- Degree of protection acc. to IEC 60529 IP30
Material properties
- Material (hood/housing) Zinc die-cast
- Material (screw) Steel, nickel plated
- Length 40 mm
- Width 31 mm
- Height 14.8 mm
- RoHS compliant
- ELV status 符合
- China RoHS e
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances 不包含
- California Proposition 65 substances Not contained
Commercial data
- Packaging size 1
- Net weight 53.6 g
- Country of origin China
- GTIN 5713140222816
- eCl@ss 27440213 D-Sub hood
- ETIM EC001133
- UNSPSC 24.0 39121416
