属性概述

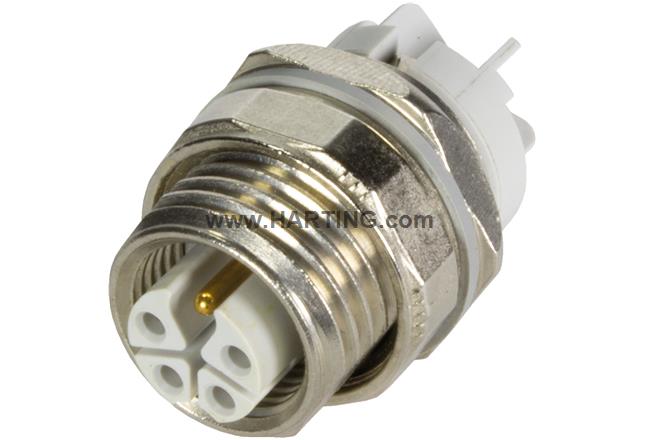

PCB适配器
直式, 包含底座, 面板内部安装
回焊焊接接线方式 (THR)
额定电流: 12 A
插针: 5
铜合金
镍表面镀金 界面端
编码: K-编码
聚酰胺 (PA)
产品详情
Identification
- Category 連接器
- Series 圓形連接器 M12
- Identification Power
- Element PCB適配器
-
Specification
直式包含底座面板內部安裝
Version
- Termination method 回焊焊接接線方式(THR)
- Gender 母頭
- Shielding 屏蔽
- Number of contacts 5
- Number of power contacts 4
- Number of special contacts 1
- Specification of special contacts 接地針
- Coding K-編碼
- Locking type 螺釘鎖扣
Technical characteristics
- Rated current 12 A
- Rated voltage 630 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Overvoltage category III
- Insulation resistance >108 Ω
- Contact resistance ≤ 10 mΩ
- Tightening torque 2 Nm 鎖緊螺母
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 100
- Degree of protection acc. to IEC 60529 IP65 / IP67 插配狀態
- Isolation group I (600 ≤ CTI)
Material properties
- Material (insert) 聚酰胺 (PA)
- Material (contacts) 銅合金
- Surface (contacts) 鎳表面鍍金 界面端
- Material flammability class acc. to UL 94 V-0
- RoHS 符合豁免標準
- RoHS exemptions 6(c)：銅合金含鉛量高達 4 %
- ELV status 符合豁免標準
- China RoHS 50
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 有
- REACH SVHC substances 鉛
- California Proposition 65 substances 有
- California Proposition 65 substances 鉛
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Specifications and approvals
- Specifications IEC 61076-2-111
Commercial data
- Packaging size 1
- Net weight 20 g
- Country of origin 羅馬尼亞
- European customs tariff number 85366990
- GTIN 5713140228405
- eCl@ss 27,460,201.00
- ETIM EC002637
- UNSPSC 24.0 39121415
