屬性概述
PCB適配器
直式, 包含底座, 面板外部安裝
回焊焊接接線方式(THR)
額定電流: 4 A
插針: 4
銅合金
鎳表面鍍金 界面端
編碼: A編碼
液晶聚合物 (LCP)
產品詳情
Identification
- Category Connectors

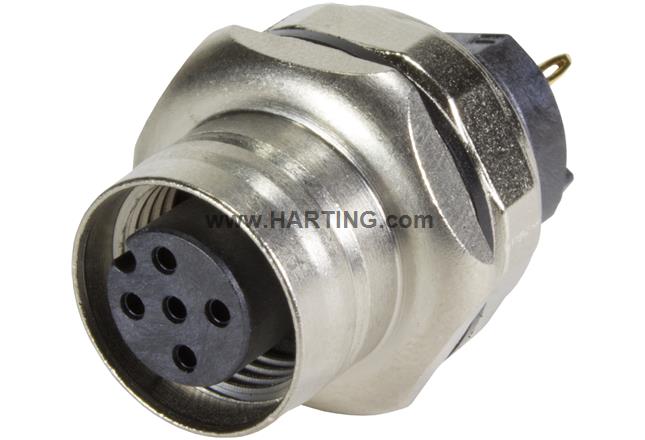

- Series Circular connectors M12
- Identification PushPull
- Element PCB adapter
-
Specification
Straightincl. housingfor front mounting
Version
- Termination method Reflow soldering termination (THR)
- Gender Female
- Shielding Shielded
- Number of contacts 4
- Coding A-coding
-
Locking type
Screw lockingPushPull
Technical characteristics
- Rated current 4 A
- Rated voltage 250 V
- Rated impulse voltage 1.5 kV
- Pollution degree 3
- Overvoltage category III
- Insulation resistance >108 Ω
- Contact resistance ≤ 10 mΩ
- Tightening torque 2 Nm Lock nut
- Limiting temperature -40 ... +85 °C
- Mating cycles ≥ 100
- Degree of protection acc. to IEC 60529 IP65 / IP67 mated condition
- Isolation group I (600 ≤ CTI)
Material properties
- Material (insert) Liquid crystal polymer (LCP)
- Material (contacts) Copper alloy
- Surface (contacts) Au over Ni Mating side
- Material (hood/housing) Zinc die-cast
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number 5dbb3851-b94e-4e88-97a1-571845975242
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 23 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140228078
- eCl@ss 27460201 PCB connector (board connector)
- ETIM EC002637
- UNSPSC 24.0 39121415
