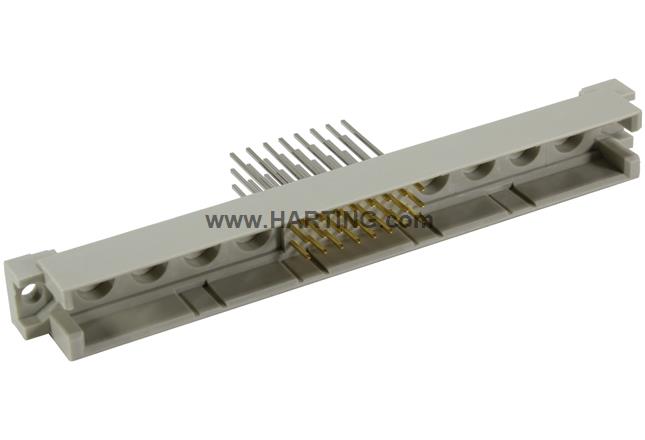

属性概述
公连接器
绕接接线方式
额定电流: 2 A
插针: 32
直式
铜合金
镍底，镀钯/镍再镀金, Ni 接线端
性能等级: 2, 符合 IEC 60603-2 标准
编码: 不缺针的编码方式
PCB 固定: 带固定法兰
热塑性树脂，玻璃纤维填充
RAL 7032（卵石灰）
产品详情
Identification
- Category 连接器
- Series DIN 41612
- Identification M反转型
- Element Male connector
- Description of the contact Straight
- Features Rated current of special contacts: see data sheet of the selected contacts
Version
- Termination method 绕接接线方式
-
Connection type
主板到子插件板PCB至电缆飞线
- Number of contacts 32
- Number of signal contacts 24
- Number of special contacts 8
- Contact configuration a、b 和 c 排，位置 13、14……19、20
- Termination length 13 mm
- Coding 不缺针的编码方式
- PCB fixing 带固定法兰
Technical characteristics
- Contact rows 3
-
Contact spacing (termination side)
2.54 mm7.62 mm
-
Contact spacing (mating side)
2.54 mm7.62 mm
- Rated current 2 A
- Rated current 额定电流在 20°C 下测得，请参见降额曲线了解详细信息
- Clearance distance ≥ 1.2 mm
- Creepage distance ≥ 1.2 mm
- Insulation resistance >1012 Ω
- Contact resistance ≤ 20 mΩ
- Limiting temperature -55 ... +125 °C
- Insertion force ≤ 23 N
- Withdrawal force ≤ 15 N
-
Performance level
2符合 IEC 60603-2 标准
- Mating cycles ≥ 400
-
Test voltage Ur.m.s.
1 kV (接头-接头)1.55 kV (接点-地)
- Isolation group IIIa (175 ≤ CTI < 400)
- Hot plugging 无
Material properties
- Material (insert) 热塑性树脂，玻璃纤维填充
- Colour (insert) RAL 7032（卵石灰）
- Material (contacts) 铜合金
-
Surface (contacts)
镍底，镀钯/镍再镀金Ni 接线端
- Material flammability class acc. to UL 94 V-0
- RoHS 符合
- ELV status 符合
- China RoHS e
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 不包含
- California Proposition 65 substances 有
-
California Proposition 65 substances
铅镍
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Specifications and approvals
Commercial data
- Packaging size 20
- Net weight 10.23 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140103252
- eCl@ss 27460201 PCB connector (board connector)
- ETIM EC002637
- UNSPSC 24.0 39121415
