Identification

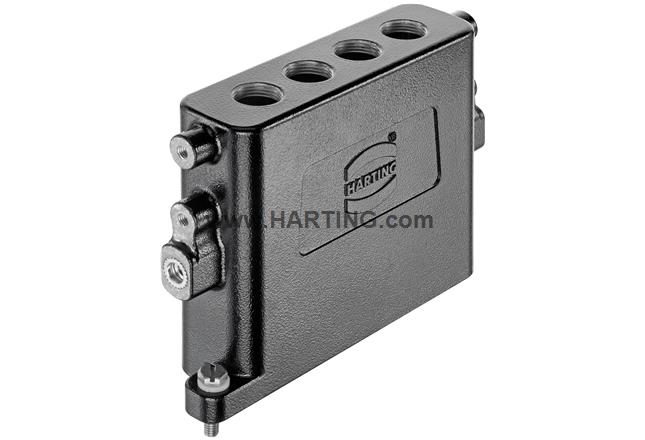

- Category Hoods / Housings
- Series of hoods/housings Han® HPR slim
- Type of hood/housing Hood
Version
- Size 22 HPR
- Version Top entry
- Number of cable entries 4
- Cable entry 4x M25
- Locking type Screw locking
- Field of application Hoods/housings for harsh environments
Technical characteristics
-
Tightening torque
10 Nm Fixing screws15 Nm PE screw
- Tightening torque (screw locking) 4 Nm
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
-
Degree of protection acc. to IEC 60529
IP66IP68IP69 / IPX9K acc. to ISO 20653
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 9005 (jet black)
- Material (locking) Stainless steel
Specifications and approvals
-
Specifications
IEC 61984IEC 60664-1
Commercial data
- Packaging size 1
- Net weight 933 g
- Country of origin China
- European customs tariff number 85389099
- GTIN 5713140175518
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
