Prezentare generală a proprietăților

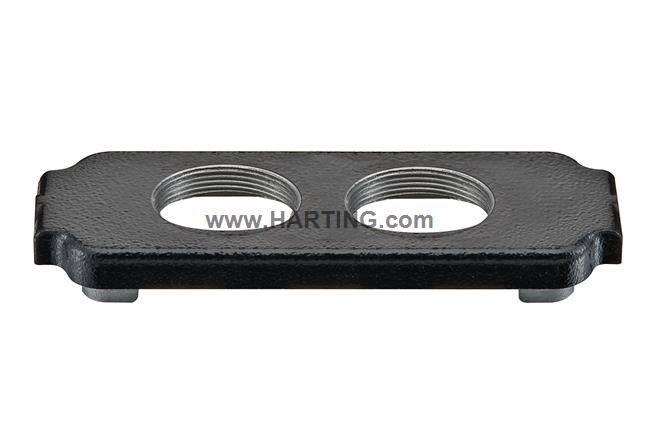

Tampa de montagem
para bases de montagem superficial, para carcaças
Tamanho: 24 B
Trava parafuso
Material (carcaça/base): Alumínio fundido, Resistente à corrosão
Revestido a pó
RAL 9005 (preto)
Material (vedação): NBR
Grau de proteção: IP65, IP68, IP69 / IPX9K conforme ISO 20653
Detalii produs
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® HPR EasyCon
- Type of hood/housing Mounting cover
-
Description of hood/housing
for surface mounted housingsfor hoods
Version
- Size 24 B
- Number of cable entries 2
- Cable entry 2x M40
- Locking type Screw locking
- Field of application Hoods/housings for harsh outdoor environments
Technical characteristics
-
Tightening torque
6 Nm Mounting cover6 Nm Distance bolt6 Nm Fixing screws
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
-
Degree of protection acc. to IEC 60529
IP65IP68IP69 / IPX9K acc. to ISO 20653
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
-
Material (hood/housing)
Aluminium die-castCorrosion resistant
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 9005 (jet black)
- Material (seal) NBR
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 234 g
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140175389
- eCl@ss 27440208 Cap for industrial connectors
- ETIM EC002314
- UNSPSC 24.0 39121467
