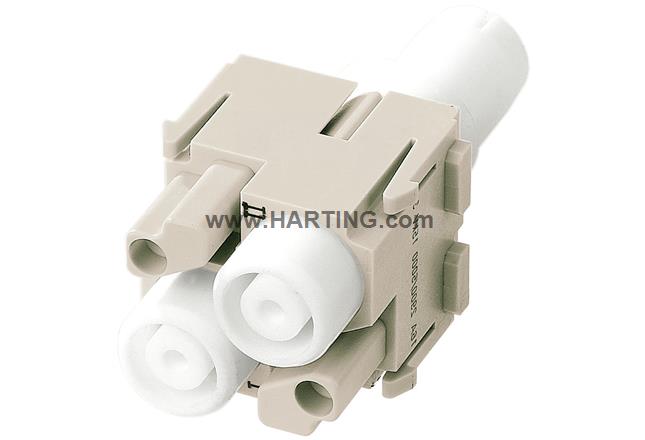

Han® HV module, for Han E® crimp contacts, Crimp termination, Female, Contacts: 2, Conductor cross-section: 0.5 ... 4 mm², Rated current: 16 A, Polycarbonate / Teflon (PTFE), RAL 7032 (pebble grey)
tuotteen yksityiskohdat
Identification
- Category Modules
- Series Han-Modular®
- Type of module Han® HV module
- Size of the module Double module
- Description of the module for Han E® crimp contacts
Version
- Termination method Crimp termination
- Gender Female
- Number of contacts 2
- Details Please order crimp contacts separately.
-
Pack contents
1 module2 locking sleeves2 heat shrink tubes
Technical characteristics
- Conductor cross-section 0.5 ... 4 mm²
- Wire outer diameter ≤8 mm
- Rated current 16 A
- Rated voltage conductor-earth 2,900 V
- Rated voltage conductor-conductor 5,000 V
- Rated impulse voltage 15 kV
- Pollution degree 3
- Rated current acc. to UL 16 A
- Rated voltage acc. to UL 5,000 V
- Insulation resistance >1010 Ω
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Polycarbonate / Teflon (PTFE)
- Colour (insert) RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number 5dbb3851-b94e-4e88-97a1-571845975242
- California Proposition 65 substances Yes
-
California Proposition 65 substances
LeadNickel
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 63 g
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140019928
- eCl@ss 27440217 Module for industrial connectors (power/signals)
- ETIM EC000438
- UNSPSC 24.0 39121552
