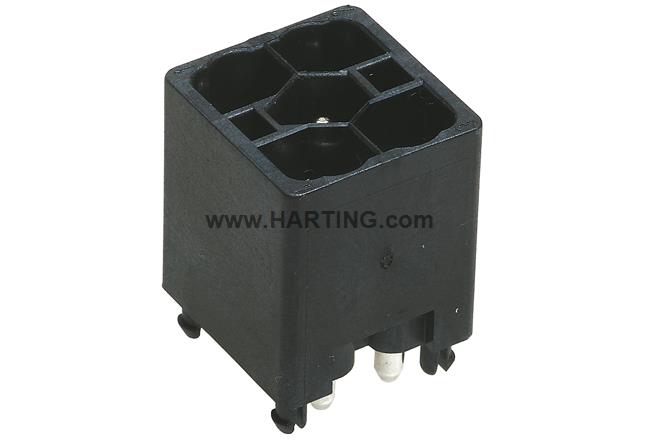

Identification
- Category 连接器
- Series Han® PushPull (V14)
- Identification Power
- Element 公头
- Specification 直式
- Features 直观的锁定机制
Version
- Termination method 焊接接线
- Shielding 无屏蔽
- Number of contacts 5
- Locking type PushPull
Technical characteristics
- Rated current 16 A
- Rated voltage conductor-earth 230 V
- Rated voltage conductor-conductor 400 V
- Rated impulse voltage 4 kV
- Pollution degree 3
- Limiting temperature -40 ... +70 °C
- Mating cycles ≥ 500
-
Degree of protection acc. to IEC 60529
IP65IP67
- Isolation group I (600 ≤ CTI)
- Vibration resistance 5-150 Hz，5 g，.35 mm，2h/轴
- Shock resistance 5 g / 30 ms，每个轴3 次冲击
Material properties
- Material (contacts) 铜合金
- Surface (contacts) 镀银
- Material (hood/housing) 热塑性塑料
- Colour (hood/housing) 黑色
- Material flammability class acc. to UL 94 V-0
- RoHS 符合豁免标准
- RoHS exemptions 6(c)：铜合金含铅量高达 4 %
- ELV status 符合豁免标准
- China RoHS 50
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 有
- REACH SVHC substances 铅
- California Proposition 65 substances 有
-
California Proposition 65 substances
铅镍
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
- Requirement set with Hazard Levels R26
Specifications and approvals
Commercial data
- Packaging size 10
- Net weight 4.94 g
- Country of origin 罗马尼亚
- European customs tariff number 85366990
- GTIN 5713140053694
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
