Properties Overview

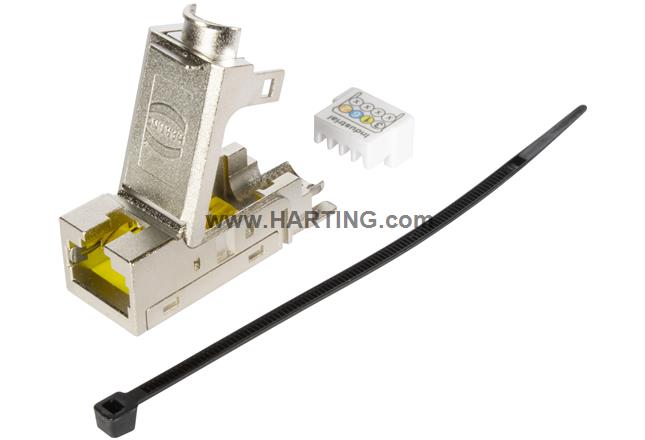

Connectors, Female, IDC termination, Polycarbonate (PC), White, Yellow, Contacts: 4, Conductor cross-section: 0.22 ... 0.32 mm² solid and stranded
tuotteen yksityiskohdat
Identification
- Category Connectors
-
Series
HARTING RJ Industrial®RJ45
- Element Female
- Specification HIFF version
Version
- Termination method IDC insulation displacement termination
- Shielding Fully shielded, 360° shielding contact
- Number of contacts 4
Technical characteristics
- Conductor cross-section 0.22 ... 0.32 mm² solid and stranded
- Conductor cross-section AWG 24 ... AWG 22
- Wire outer diameter 1.7 mm
- Rated current 1.76 A
-
Rated voltage
50 V AC 60 V DC
- Transmission characteristics Cat. 5 Class D up to 100 MHz
-
Data rate
10 Mbit/s 100 Mbit/s
- Limiting temperature -40 ... +70 °C
- Mating cycles ≥ 750
- Degree of protection acc. to IEC 60529 IP20
- Cable diameter 5 ... 9 mm
Material properties
- Material (insert) Polycarbonate (PC)
-
Colour (insert)
WhiteYellow
- Material (hood/housing) Zinc die-cast
- Surface (hood/housing) Nickel plated
- Material flammability class acc. to UL 94 V-2
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
- Approvals DNV GL
- PROFINET Yes
Commercial data
- Packaging size 10
- Net weight 28.2 g
- Country of origin Latvia
- European customs tariff number 85366990
- GTIN 5713140061163
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
