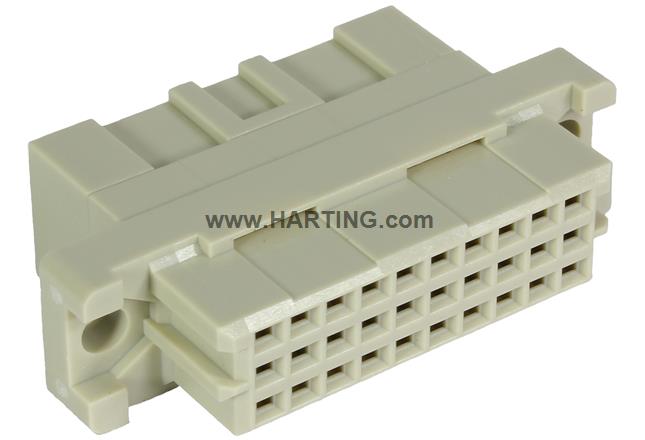

Identification
- Category Connectors
- Series DIN 41612
- Identification Type 3C
- Element Female connector
Version
- Termination method Crimp termination
- Connection type PCB to cable
- Number of contacts 30
- Coding Coding with loss of contacts
- PCB fixing With fixing flange
- Details Please order crimp contacts separately.
Technical characteristics
- Contact rows 3
- Contact spacing (termination side) 2.54 mm
- Contact spacing (mating side) 2.54 mm
- Rated current Rated current measured at 20 °C, see derating curve for details
- Clearance distance ≥ 1.2 mm
- Creepage distance ≥ 1.2 mm
- Insulation resistance >1012 Ω
- Contact resistance ≤ 20 mΩ
- Limiting temperature -55 ... +125 °C
- Insertion force ≤ 30 N
- Withdrawal force ≤ 20 N
-
Test voltage Ur.m.s.
1 kV (contact-contact)1.55 kV (contact-ground)
- Isolation group IIIa (175 ≤ CTI < 400)
- Hot plugging No
Material properties
- Material (insert) Thermoplastic resin, glass-fibre filled
- Colour (insert) RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
Specifications and approvals
Commercial data
- Packaging size 20
- Net weight 5.24 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140042247
- eCl@ss 27460201 PCB connector (board connector)
- ETIM EC002637
- UNSPSC 24.0 39121415
