Identification
- Category Connectors

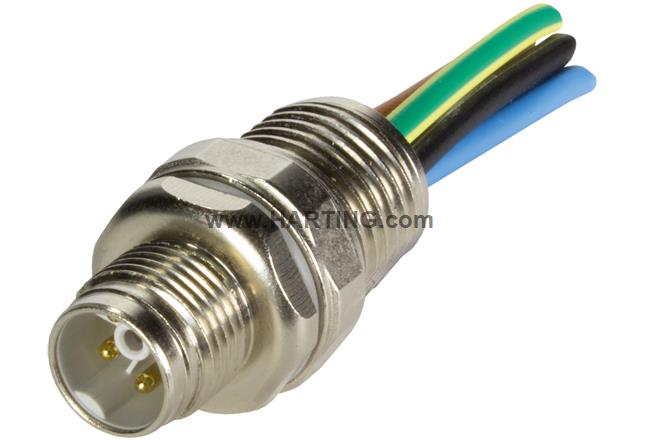

- Series Circular connectors M12
- Identification Power
- Element Panel feed through
-
Specification
With conductorsfor front mounting
Version
- Gender Male
- Shielding Unshielded
- Number of contacts 5
- Number of power contacts 4
- Number of special contacts 1x PE contact
- Specification of special contacts PE contact
- Coding K-coding
-
Locking type
Screw lockingPushPull
Technical characteristics
- Conductor cross-section 1.5 mm²
- Conductor cross-section [AWG] AWG 16
- Rated current 12 A
- Rated voltage 630 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Overvoltage category III
- Insulation resistance >108 Ω
- Contact resistance ≤ 10 mΩ
-
Tightening torque
0.8 Nm2 Nm Lock nut
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 100
- Degree of protection acc. to IEC 60529 IP65 / IP67 mated condition
- Isolation group I (600 ≤ CTI)
- Conductor length 30 cm
Material properties
- Material (insert) Polyamide (PA)
- Material (contacts) Brass
- Surface (contacts) Au over Ni Mating side
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number b51e5b97-eeb5-438b-8538-f1771d43c17d
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
- Requirement set with Hazard Levels R26
Specifications and approvals
-
Specifications
IEC 61076-2-111IEC 61076-2-010
Commercial data
- Packaging size 1
- Net weight 48 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140227521
- eCl@ss 27440103 Sensor-actuator connector chassis (sensor technology acturator)
- UNSPSC 24.0 39121413
